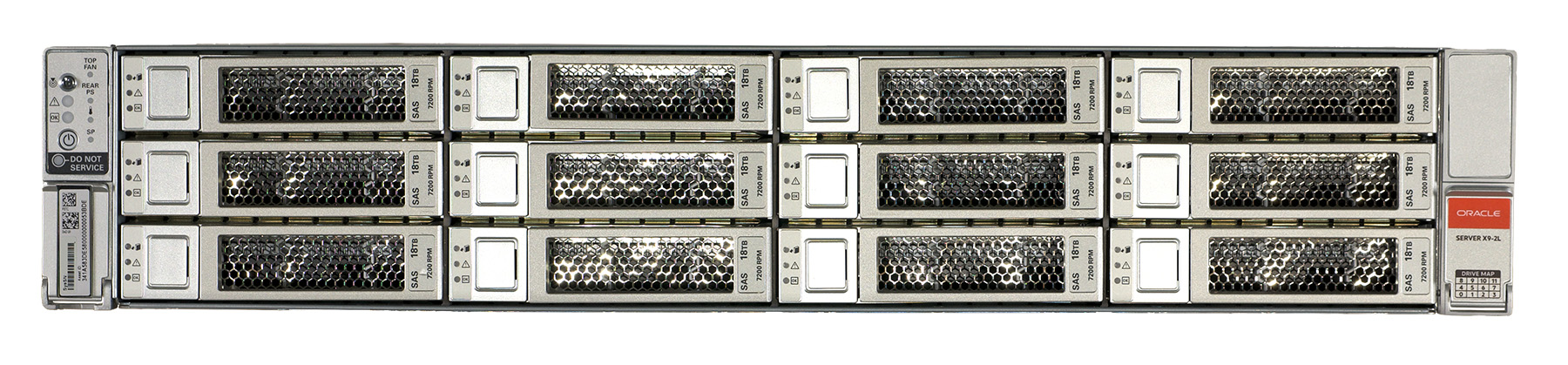

Oracle Server X9-2L

Processor
Number	1 or 2 Processors (two processors required for maximum memory and I/O configurations)
CPUs	Intel Xeon 5318Y, 24 core, 2.1 GHz, 165W Intel Xeon 8358, 32 core, 2.6 GHz, 250W Intel Xeon 6354, 18 core, 3.0 GHz, 205W Intel Xeon 4314, 16 core, 2.4 GHz, 135W
Main Memory
Capacities	16 DIMM slots per processor, 32 DIMM slots total RDIMM Size and Type: 32GB: DDR4-3200 Registered DIMMs, 64GB: DDR4-3200 Registered DIMMs Minimum Memory Capacity: 2 DIMMs per installed CPU is the minimum requirement. Maximum Memory Capacity: 2TB using 64GB DIMMs in a 2 CPU configuration
Standard I/O
Network	One 100/1000BASE-T RJ-45 Gigabit Ethernet (GbE) port, labeled NET 0
Network Management	One 100/1000BASE-T RJ-45 Oracle Integrated Lights Out Manager (ILOM) service processor (SP) network management (NET MGT) Ethernet port
Serial Management	One RJ-45 serial management (SER MGT) port
USB	1 USB 3.0 Port - rear panel
I/O Expansion	Ten PCIe Gen4 slots that accommodate low-profile PCIe cards: Slots 3 and 10: x16 electrical interface low-profile PCIe Gen4 slots Slots 1, 2, 4, 5, 6, 7, 8 & 9: x8 electrical interface PCIe Gen4 slots Note: Slots 1-5 are nonfunctional in single processor systems
Internal Mass Storage
Disks and Flash	Oracle Server X9-2L storage drive configuration can comprise both hard disk drives (HDDs) or solid state drives (SSDs). The configuration includes: 1 CPU: Up to four 3.5-inch hot-pluggable PCIe Gen4 NVM-Express (NVMe) SSDs 2 CPU: Up to twelve 3.5-inch hot-pluggable SAS-3 HDDs, or up to twelve 2.5-inch hot-pluggable PCIe Gen4 NVM-Express (NVMe) SSDs Two hot-pluggable internal M.2 Gen3 SATA or PCIe Gen3 NVMe flash SSDs An NVM-Express PCIe x16 retimer card is required for storage drive configurations that contain NVMe SSDs in drive bays 8 through 11.
Power Supplies and Fans
Power Supplies	Two hot-swappable and highly-redundant 1200W A269.2 power supplies.
Cooling Fans	Four hot-swappable fan modules, each containing an 80x80x56 mm counter-rotating dual motor fan Cooling is front to back.
Environment
Power Consumption	Online power calculator
Voltage (nominla)	100 - 127 VAC; 200-240 VAC
Input Current (maximum)	10.0A @ 100-127VAC; 7.0A @ 200-240 VAC
Temperature	Operating: 5° C to 35° C (41° F to 95° F) Nonoperating: -40° C to 68° C (-40° F to 154°F)
Heat Output	11,600 BTU/hr max.
Relative Humidity	Operating: 10% to 90% noncondensing, short term -5° C to 55° C (23° F to 113° F) 5% to 90% noncondensing, with a maximum of 0.024 kg of water per kg of dry air (0..053 lbs water / 2.205 lbs dry air) Nonoperating: Up to 93% noncondensing 35° C (95°F) maximum wet bulb
Altitude	Operating: Up to 3,000 m * (9,840 ft) maximum ambient temperature is derated by 1° C for every 300 m (985 ft) above 900 m (2,952 ft) * In China markets, regulations may limit installations to a maximum altitude of 2,000 meters (6,562 feet) Nonoperating: Up to 12,000 m (39,370 ft)
Acoustic Noise	Nidec - 50% PWM: 8.0 Bels; 100% PWM: 9.5 Bels Delta - 50% PWM: 7.8 Bels; 100% PWM: 9.1 Bels
Vibration	Operating: 0.15 G (z-axis); 0.10 G (X-, y-axes), 5-500Hz swept sine; IEC 60068-2-6 Test FC Nonoperating: 0.5 G (z-axis); 0.25 G (x-, y-axes), 5-500Hz swept sine; IEC 60068-2-6 Test FC
Shock	Operating: 3.5 G, 11 ms half-sine; IEC 60068-2-27 Test Ea Nonoperating: Roll-off: 1.25-inch roll-off free fall, front to back rolling directions Threshold: 13-mm threshold height at 0.65 m/s impact velocity ETE-1010-02 Rev A
Regulations Meets or exceeds the following requirements:
Safety	UL/CSA-60950-1, EN60950-1, IEC60950-1 CB scheme with all country differences. UL/CSA 62368-1, EN 62368-1, IEC 62368-1 CB scheme with all country differences.
EMC	Emissions: FCC 47 CFR 15, ICES-003, EN55022, EN55032, KN32, EN61000-3-2 and EN61000-3-3.
Immunity	EN 55024, KN35
European Union Directives	2014/35/EU Low Voltage Directive 2014/30/EU EMC Directive 2011/65/EU RoHS Directive 2012/19/EU WEEE Directive 2009/125/EC Ecodesign Energy Related Products Directive
Certifications	North America Safety (NRTL) European Union (CE) International CB Scheme BIS (India) BSMI (Taiwan) CCC (PRC) EAC (EAEU including Russia) KC (Korea) RCM (Australia) VCCI (Japan) UKCA (United Kingdom)
Dimensions and Weight
Height	86.9 mm (3.42 in.).
Width	482 mm (18.97 in.).
Depth	772 mm (30.04 in.).
Weight	Fully Populated Server: 33.11 kg (73 lbs)
Rack Mounting
Oracle Server X8-2L Rack Installation Kits	Tooless rackmounting slide rail kit Cable management arm
Service Clearance	Front: 123.2 cm (48.5 in) Rear: 91.4 cm (36 in)
