SPARC S7-2L Server

Processor

Number

Two SPARC S7 8-Core, 4.27GHz processors

CPUs

Up to 64 threads per processor (up to 8 threads per core)
Four data analytics accelerators per processor, each supporting four concurrent in-memory query operations with decompression
Eight on-chip encrytion instruction accelerators with direct nonpriviledged support for 15 industry-standard cryptographic algorithms: AES, Camellia, CRC32c, DES, 3DES, DH, DSA, ECC, MD5, RSA, SHA-1, SHA-224, SHA-256, SHA-384, SHA-512 (one per core)
Eight floating-point units per processor (one per core)
One random number generator (one per processor)

Cache memory

Level 1: 16KB instruction and 16 KB data per core
Level 2: 256 KB L2 I$ per four cores, 256 KB L2 D$ per core pair
Level 3: 16 MB L3$ on chip

Main Memory

Capacities

DIMM slots: 8 slots per processor, supporting half or fully populated configurations
DIMM type: DDR4-2400
DIMM size: 16GB, 32GB or 64GB
Maximum capacity: 1024GB max configuration with 64GB DIMMs and two processors

Standard Integrated Interfaces

Network

4 × 10 GbE Ethernet ports (100 Mbps/1 Gbps/10 Gbps), full duplex only, auto-negotiating

Network Management

One dedicated 10Mbps/100Mbps/1Gbps RJ-45 port Ethernet port

Serial Management

One dedicated RJ-45 port

Remote Management

Integrated Lights Out Manager (ILOM)

USB

Two USB 2.0 ports (front)

PCI Expansion Slots

6 low-profile PCI-Express 3.0 x8 slots.

Slot #	Physical	Electrical
1	x8	x8
2	x16	x8
3	x8	x8
4	x8	x8
5	x16	x8
6	x8	x8

Internal Mass Storage

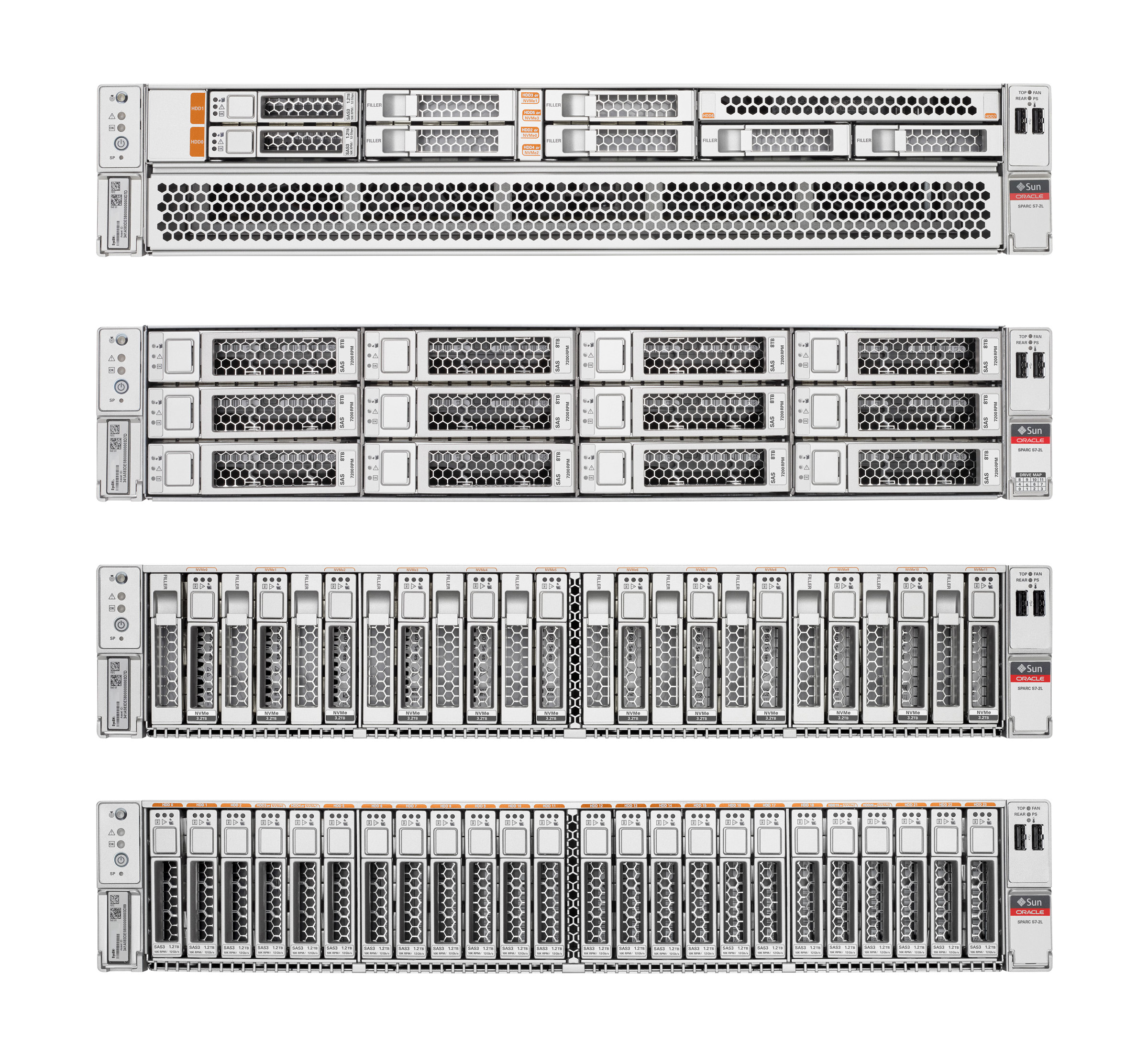

Disks

1x optional 12Gbps SAS-3 controller
Eight disk chassis - 8x 2.5-inch SAS-3 disk drive slots (4 support NVMe)
Twelve disk chassis - 12x 2.5-inch NVMe drive slots
Fourteen disk chassis - 12x 3.5-inch SAS-3 disk drive slots, with 2x rear 2.5-inch SAS-3 disk drive slots
Twenty six disk chassis - 24x 2.5-inch disk drive slots (4 support NVMe), with 2x rear 2.5-inch SAS-3 disk drive slots
400GB or 800GB 2.5-inch SAS-3 solid state drives
600GB or 1.2TB 2.5-inch SAS-3 disk drives
1.6TB or 3.2TB or 6.4TB 2.5-inch NVMe solid state drives
8TB SAS-3 3.5-inch disk drives
SAS-3 / NVMe mixing is supported on eight disk and 26 disk chassis options

Power Supplies

2× 1200 Watt, hot-swappable, N+1 redundant power supply units (PSU)

Environment

Input Voltage

200 to 240 VAC at 1200W, 50-60Hz

Input Current

5.2 A @ 200 VAC (max)

Input Power

1048 W @ 200 VAC (max)

Maximum Heat Dissipation

3576 BTU/hr, 3772 KJ/hr

Power Consumption

Online power calculator

Temperature

Operating: 5° C to 35° C (41° F to 95° F) ; decrease in maximum temperature: above 900 M (2952 ft) 1° C/300 m (1.8°/984 ft)
Nonoperating: -40° C to 65° C (-40° F to 149° F)

Humidity

Operating: 10% to 90% relative humidity noncondensing, 27° C (81° F) maximum dew point
Nonoperating: 93% relative humidity noncondensing, 38° C (100° F) maximum wet bulb

Altitude

Operating: 0m to 3,000m (0 ft. to 9,840 ft), except in China markets where regulations may limit installations to a maximum altitude of 2000 m
Nonoperating: 0m to 12,000m ( 0 ft. to 39,370 ft.)

Acoustic Noise - Sound Power Level LwAD

0% Fan Speed: 7.9 B (1 B = 10 dB)
100% Fan Speed: 8.6 B (1 B = 10 dB)

Acoustic Noise - Sound Pressure LpAM

60% Fan Speed: 65 dBA (avg of four bystander positions)
100% Fan Speed: 72 dBA (avg of four bystander positions)

Regulations
Meets or exceeds the following requirements:

Safety

UL/CSA 60950-1, EN 60950-1, IEC 60950-1 CB Scheme with all country differences

EMI/EMC

FCC 47 CFR 15, ICES-003, EN 55022, EN61000-3-2, EN61000-3-3

Immunity

EN 55024

Certifications

North American Safety (NRTL), European Union (EU), International CB Scheme, BIS (India), BSMI (Taiwan), RCM (Australia), CCC (PRC), MSIP (Korea), VCCI (Japan), VNTA (Vietnam), Morocco, Republic of Srpska.

European Union Directives

Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU, Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, and WEEE Directive 2012/19/EU

Dimensions and Weight

Height

88 mm (3.5 in.), 2U

Width

445 mm (17.5 in.)

Depth

737 mm (29 in.)

Weight

8 Disk Config: 24.5 kg (54 lbs) fully populated
12 2.5-inch NVME Disk Config: 26 kg (57 lbs) fully populated
12 3.5-inch +2 rear 2.5-inch Disk Config: 30 kg (66 lbs) fully populated
24 +2 rear Disk Config: 29 kg (64 lbs) fully populated

Clearance and Service Access

Front

1232 mm (48.5 in.)

Rear

914.4 mm (36 in.)
