Oracle Database Appliance X9-2L

Processor

Number

2 Processors

Architecture

Type: Intel Xeon S4314 Processor Series

CPUs

Two Intel 2.4GHz 16-Core Xeon S4314, 135W, 24 MB L3 cache

Main Memory

Capacities

32 DIMM Slots (16 DIMM slots are populated, expandable to 32 DIMM slots)
DIMM Size and Type:32GB: DDR4-3200 Registered DIMM
Maximum Memory Capacity: 1.0 TB using 32GB DIMMs x 32 slots
Minimum Memory Capacity: 512GB using 32GB DIMMs x 16 slots

Standard I/O

Network

Four 10GBASE-T Ethernet ports (RJ-45 connector) expandable up to 12 x 10GBase-T ports or Two 10/25 GbE ports (SFP28) expandable up to 6 10/25 GbE ports

Network Management

One 10/100/1000Base-T Network Management (NET MGT/RJ-45 connector) port

Serial Management

One serial console (SER MGT/RJ-45 connector) port, used to connect to ILOM service processor.

USB

Rear: 1 USB 3.0 Port

I/O Expansion

PCIe 4.0 slots

PCI-E slot 4: Dual Port 10/25GbE (SFP28) Ethernet Adapter or Quad Port 10GBase-T Adapter (Optional)
PCI-E slot 6: Dual Port 10/25GbE (SFP28) Ethernet Adapter or Quad Port 10GBase-T Adapter
PCI-E slot 8: Dual Port 10/25GbE (SFP28) Ethernet Adapter or Quad Port 10GBase-T Adapter (Optional)
PCI-E slot 10: Retimer card (required for NVMe drives in slots 8 to 11)

Note: No additional PCIe cards can be added in the non-mentioned slots

Internal Mass Storage

Disks

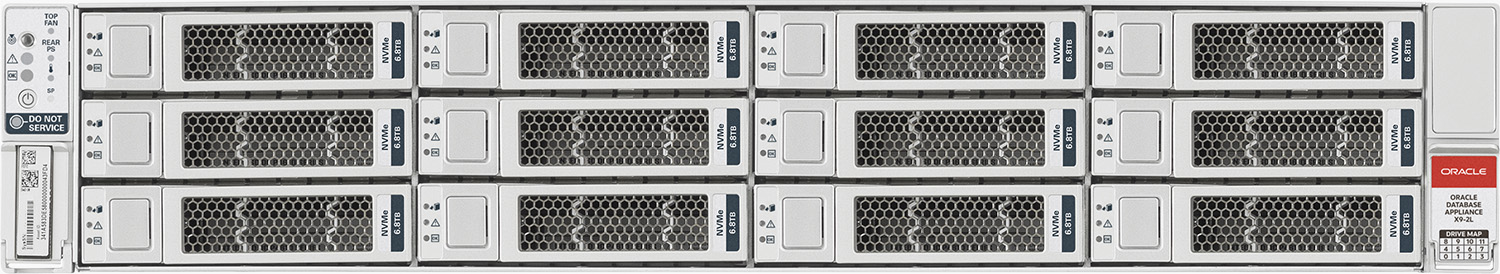

Twelve front-accessible and hot-swappable 2.5" disk bays (Two NVMe SSD's (6.8TB per drive) for data storage).

Optional expansion up to twelve total NVMe SSD's (6.8TB per drive) for data storage.

Drive Type	Density	Speed	Form Factor
SATA-3	240GB	Flash Solid State	M.2
NVMe PCIe 3.0	6.8TB	NVMe Solid State	2.5"

Power Supplies and Fans

Two 1200W hot-swappable and redundant power supplies and 4 hot-swappable and Redundant Fan Modules each with 2 fans.
Cooling is front to back.

Environment

Power Consumption

Online power calculator

AC power

Rated line voltage: 100 to 240 VAC.
Rated input current 100 to 127 VAC 7.2 A and 200 to 240 VAC 3.4 A.

Temperature

Operating: 5° C to 35° C (41° F to 95° F)
Nonoperating: -40° C to 70° C (-40° F to 158°F)

Humidity

Operating: 10% to 90% relative humidity noncondensing.
Nonoperating: Up to 93% relative humidity noncondensing

Altitude

Single, non-rack system:
Operating: Up to 3,000 m (9,840 ft.) maximum operating temperature is derated by 1° C for every 300 m (985 ft) above 900 m (2,952 ft).
Nonoperating: Up to 12,000 m (39,370 ft.)

Acoustic Noise Emissions

8.1 Bels A-weighted operating, 5.8 Bels A-weighted idling

Regulations
Meets or exceeds the following requirements:

Safety

UL/CSA-60950-1, EN60950-1-2006, IEC60950-1 CB scheme with all country differences.

EMC

Emissions: FCC CFR 47 Part 15, ICES-003, EN55022, EN55032, KN32, EN61000-3-2 and EN61000-3-3.

Immunity

EM55024, KN35

Other

Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU, Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC, Low Voltage Directive 2006/95/EC, and EMC Directive 2004/108/EC

Certifications

North America Safety (NRTL)
European Union (EU)
International CB Scheme
BIS (India)
BSMI (Taiwan)
RCM (Australia)
CCC (PRC)
MSIP (Korea)
VCCI (Japan)
Morocco
Republic of Srpska

European Union Directives

2014/35/EU Low Voltage Directive
2014/30/EC EMC Directive
2011/65/EU RoHS Directive
2012/19/EU WEEE Directive

Dimensions and Weight

Height

86.9 mm (3.42 in.) 2U.

Width

445.0 mm (17.5 in.).

Depth

759.4 mm (29.9 in.).

Weight

Maximum: 28.6 kg (63 lbs.) fully populated.

Rack Mounting

Included ODA X9-2L Rack Installation Kits

Tooless rackmounting slide rail kit.
Cable Management Arm.
