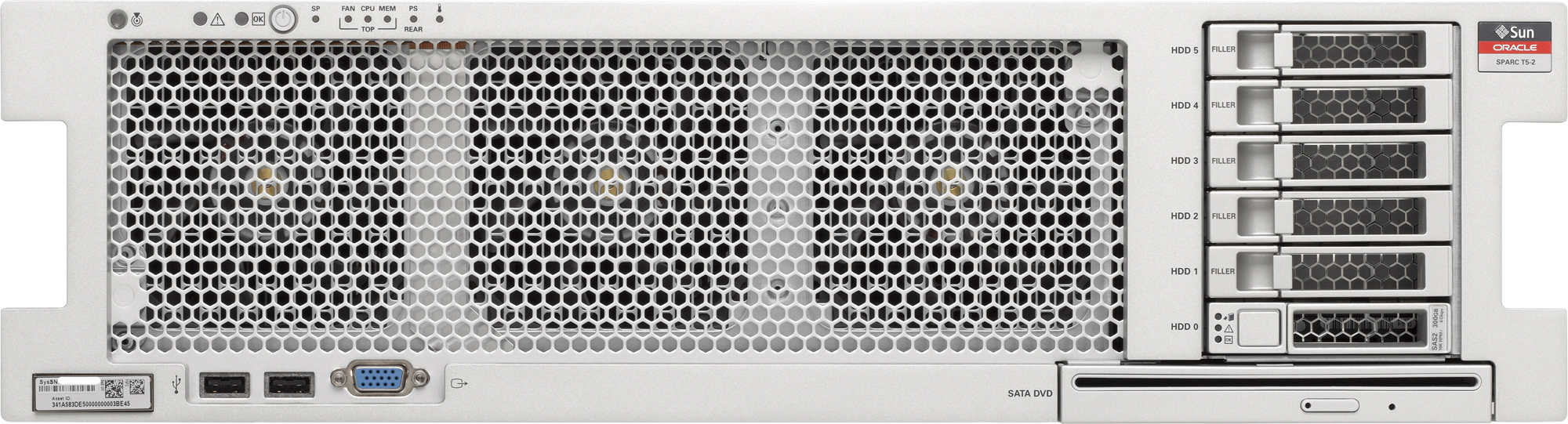

SPARC T5-2 Server

Processor

Number

One or Two SPARC T5 16-Core 3.6GHz processors

CPUs

Up to 128 threads per processor for a maximum of 256 threads per system
Sixteen floating-point units per SPARC T5 processor
Dual PCIe Gen3 interfaces

Cache memory

16-KB instruction cache, 16-KB data cache, 1280-KB L2 cache, 8-MB L3 cache (8 banks, 16-way, set associative)

Main Memory

Capacities

Total DIMM slots Dual Socket CPU Configuration: 32 - 4 slots per memory riser, 4 memory risers per CPU, 8 total memory risers
Total DIMM slots Single Socket CPU Configuration: 16 - 4 slots per memory riser, 4 memory risers per CPU, 4 total memory risers
DIMM type: DDR3
DIMM size: 8GB, 16GB or 32GB
Minimum Configruation Dual Socket CPU: 256GB. (32× 8GB or 16× 16GB)
Minimum Configuration Single Socket CPU: 128GB (16× 8GB or 8× 16GB)
Maximum capacity Dual Socket CPU: 1TB (32× 32GB)
Maximum capacity Single Socket CPU: 512GB (32× 16GB or 16× 32GB)

Standard Integrated Interfaces

Network

4 × 10 GbE Ethernet ports (100 Mbps/1 Gbps/10 Gbps)

Network Management

One dedicated 10/100Base-T RJ-45 port Ethernet port

Serial Management

One dedicated RJ-45 port

Remote Management

Onboard service processor, running Integrated Lights Out Manager (ILOM)

Graphics

One DB-15 VGA port

USB

Front: 2 USB 2.0 Ports
Rear: 2 USB 3.0 Ports
Internal: 1 USB 3.0 Port

PCI Expansion Slots

8 low-profile PCI-Express 3.0 slots.

Slot #	Physical	Electrical
1	x8	x8
2	x8	x8
3	x8	x8
4	x16	x8
5	x16	x8
6	x8	x8
7	x8	x8
8	x8	x8

Internal Mass Storage

Disks

Up to six 2.5-inch SAS drives or SSD drives
300GB or 600GB 2.5-inch SAS disk drives
100GB, 300GB or 400GB SSD drives
RAID 0, RAID 1, and RAID 1E support

DVD-ROM

1 slimline SATA DVD +/-RW

Power Supplies

2 × 2060 Watt, hot-swappable, 1+1 redundant power supply units (PSU)

Environment

Input Voltage

200 - 240 VAC, 50-60Hz

Input Current

10.1A @ 200 VAC (max)

Input Power

1927.7W @ 200 VAC (max)

Maximum Heat Dissipation

4,953 BTU/hr, 5225.69 KJ/hr

Power Consumption

Online power calculator

Temperature

Operating: 5° C to 35° C (41° F to 95° F)
Nonoperating: -40° C to 65° C (-40° F to 149° F)

Humidity

Operating: 10% to 90% relative humidity noncondensing, 27° C (80.6° F) maximum wet bulb
Nonoperating: Up to 93% relative humidity noncondensing, 38° C (100.4° F) maximum wet bulb

Altitude

Operating: Up to 3000m (9840 ft), maximum ambient temperature is derated by 1° C for every 300m above 900m (1.8° F for every 1000ft)
Nonoperating: Up to 12000m (39370 ft.)

Acoustic Noise

Operating/Idling: 77 dB / 76 dB (LwAd, 1B = 10dB)
Operating/Idling: 61.5 B / 61.2 B (LpAm, bystander positions)

Regulations
Meets or exceeds the following requirements:

Safety

UL/CSA 60950-1 (2nd Ed), EN 60950-1 (2nd Ed), IEC 60950-1 (2nd Ed) CB Scheme with all country deviations, CNS 14336-1

EMI/EMC

EN 55022 Class A, 47 CFR 15B Class A, ICES-003 Class A, VCCI Class A, CISPR22 Class A, CNS 13438 Class A, KN22 Class A, EN 61000-3-2, EN
61000-3-3

Immunity

EN 55024, KN24

Regulatory Markings

CE, FCC, ICES-003, C-Tick, VCCI, GOST-R, BSMI, KCC, cTUVus or cULus, S-Mark

European Union Directives

Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU

Dimensions and Weight

Height

129.85 mm (5.11 in.), 3U

Width

436.5 mm (17.18 in.)

Depth

732 mm (28.81 in.)

Weight

Max: 36.28 kg (80 lbs) max, without rackmount kit

Clearance and Service Access

Front

914.4 mm (36 in.)

Rear

914.4 mm (36 in.)
